In order to not damage the tires, I needed to raise the fenders from my original layout. I added 4 inches to the overall height by adding rectangular tubing to the support brackets that are mounted to the trailer frame. I did a little drawing to make sure this would be the look I wanted before wasting my time on the modification.
|

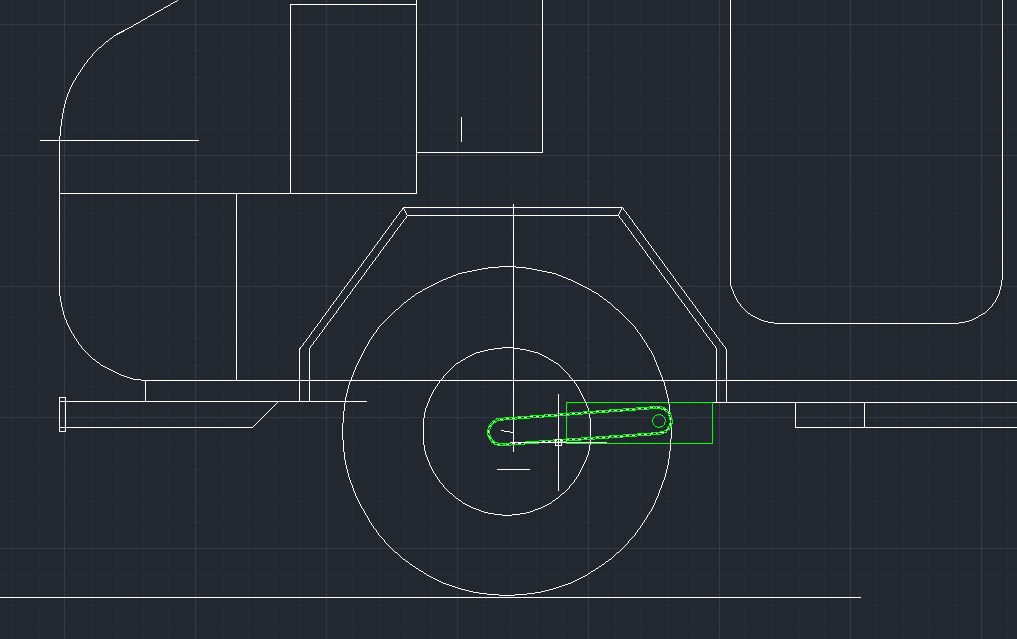

Original Fender Design |
|
Fender in Relation to Tire After Build with Dead Load |
|
Proposed Modification |
Since I fabricated the fender in place on the chassis and was relatively certain I had heat stresses locked into the fender, I decided to brace the fenders with some angle iron prior to cutting the fender free from the support brackets.
|
Fender Pre-surgery |
|
Fender Braced for Removal |
|
Fender Cut Free from Supports |
|
Fender Set Aside for Re-installation Later |
I needed a 4 inch extension to get the proper spacing and look between the fender and tire. They don't make 1 x 4 rectangular tubing so I had to male my own.
|

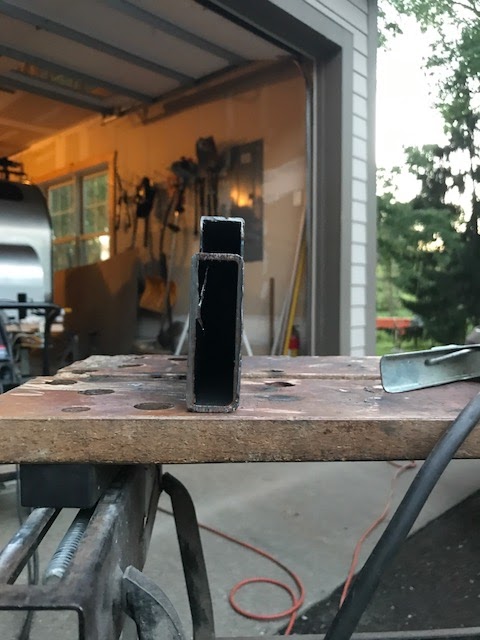

Fabricated 4" Extension from 1 x 3 and 1 x 1 Tubing |
I welded and ground the longitudinal seams and boxed in the ends before installing on the existing fender supports.
|
Ground Seams and Boxed-in Ends |
|
Extension Added to Front Support |
|
Extension Added to Rear Support |
I was able to get some solid welds on the fender extensions, so I ground them flush and filled the bug holes with Bondo to prepare the surface for more bed liner coating.
|
Bondo of Bug Holes from Welding - Passenger Side. |
|
Bondo of Bug Holes from Welding - Driver Side Side |
Tire installed to verify correct clearance was achieved under dead load of trailer. Now just touch-up the bed-liner coating on the fenders and the fix is done.
|
Tire Clearance under Dead Load |
The aluminum sheet I used was mill finish, so it had no protection to the exposed surface other than a light coating of oil. I had a lot of oxidization spots all over the trailer where sweat would drip on the aluminum or a hand print would appear on the aluminum siding through the process of constructing and trimming out the edges. I did not want to spend massive hours trying to clean the oxidization spot off the exterior; I even considering painting the trailer to get rid of the stains across the entire trailer as the spots really detracted from the overall appearance.
I found this product from a company called California Custom that swore by their product. I viewed a couple videos and it appeared to work really well, so I gave it a try.
|
California Custom Deoxidizer and Aluminum Polish |
The white marks on the lid are drops of sweat that dried on the aluminum that wont come off with general wiping.
|
Stains on Aluminum Sheeting |
|
Deoxidizer on Left Half of Battery Box Lid |
|
Batter Box Lid after Deoxidizer and Purple Polish |
|
Nice Shine for Only 10 Minutes of Work |
|
Deoxidizer Lifts the Stains |
|
Battery Box Complete |
|
Shine is Nice compared to the Rest of the Trailer |
Each bottle cost $18 and I was able to clean and polish my entire trailer in approximately 7 hours by myself with no power tools. The stuff works as claimed!
As soon as I cleanup my spreadsheet, I will post my total cost of the build along with whatever links I have to websites and vendors I used to purchase my materials. In addition, I will update on the total weight and tongue weight of the trailer once I can get this across a scale.
I will say after our first trip, the things trails exceptionally well. No problem hitting 80 MPH down the freeway and the trailer suspension is the smoothest ride I have ever experience.
